OWNERS MANUAL

STARPLAYER TV


STARPLAYER TV

elegance new defined

transition graphic element Transition_trans-2b2b2b

All the essentials, right where you need them. Dive in!

Neck
Type: Set Neck, 1-piece Maple
Width: 42.5 mm / 1.67" (nut), 52 mm / 2.05" (12th fret)
Thickness: 21 mm / 0.8" (1st fret), 24 mm / 0.95" (12th fret)
Shape: Medium D
Fingerboard: Indian Rosewood, radius 305 mm / 12"
Inlays: Cream dots
Frets: 22 Jumbo 2.8 x 1.0 mm
Scale length: 648 mm / 25.5"
Trussrod: Steel dual-action
Headstock: Black
Body
Type: Semi-hollow with sustain block, bent sides, f-hole
Top: Laminated spruce
Back, sides: Laminated flamed maple
Dimensions: 46 x 34 cm / 18.11" x 13.38"
Height (sides): 4.5 cm / 1.8"
Binding: Cream
Pickguard: Sparkle, Black/Gold Custom or nickel-plated brass (depending on the model)
Finish: PUR lacquer (Polyester used on Sparkle, Pearl and Pearloid tops). Back and sides Trans-Black, except for special models.
Hardware
Tuners: Duesenberg Z-Tuners
Bridge: Duesenberg Steel Saddle Bridge
Tailpiece: Duesenberg Aluminum Stop Tailpiece (non-trem models only)
Vibrato System: Duesenberg Diamond Deluxe Tremola (trem models only)
Strap pins: Duesenberg Standard (Straplock compatible)
Hardware finish: Nickel
Strings: Duesenberg Custom 10/50 (010-013-017-028-042-050)
Electrics
Pickup (neck): Duesenberg Domino P90
Pickup (bridge): Duesenberg GrandVintage Humbucker
Wiring: 1 Volume, 1 Tone, 3-Way Pickup Selector
Accessories
Case: Custom Line Case (included)
Tools: All required allen keys (included)

Getting to know your instrument is important. Here's how it works:

Mit dem Aufruf des Videos erklärst Du Dich einverstanden, dass Deine Daten an YouTube übermittelt werden und dass Du die Datenschutzerklärung gelesen hast.

Akzeptieren
Transition Graphic

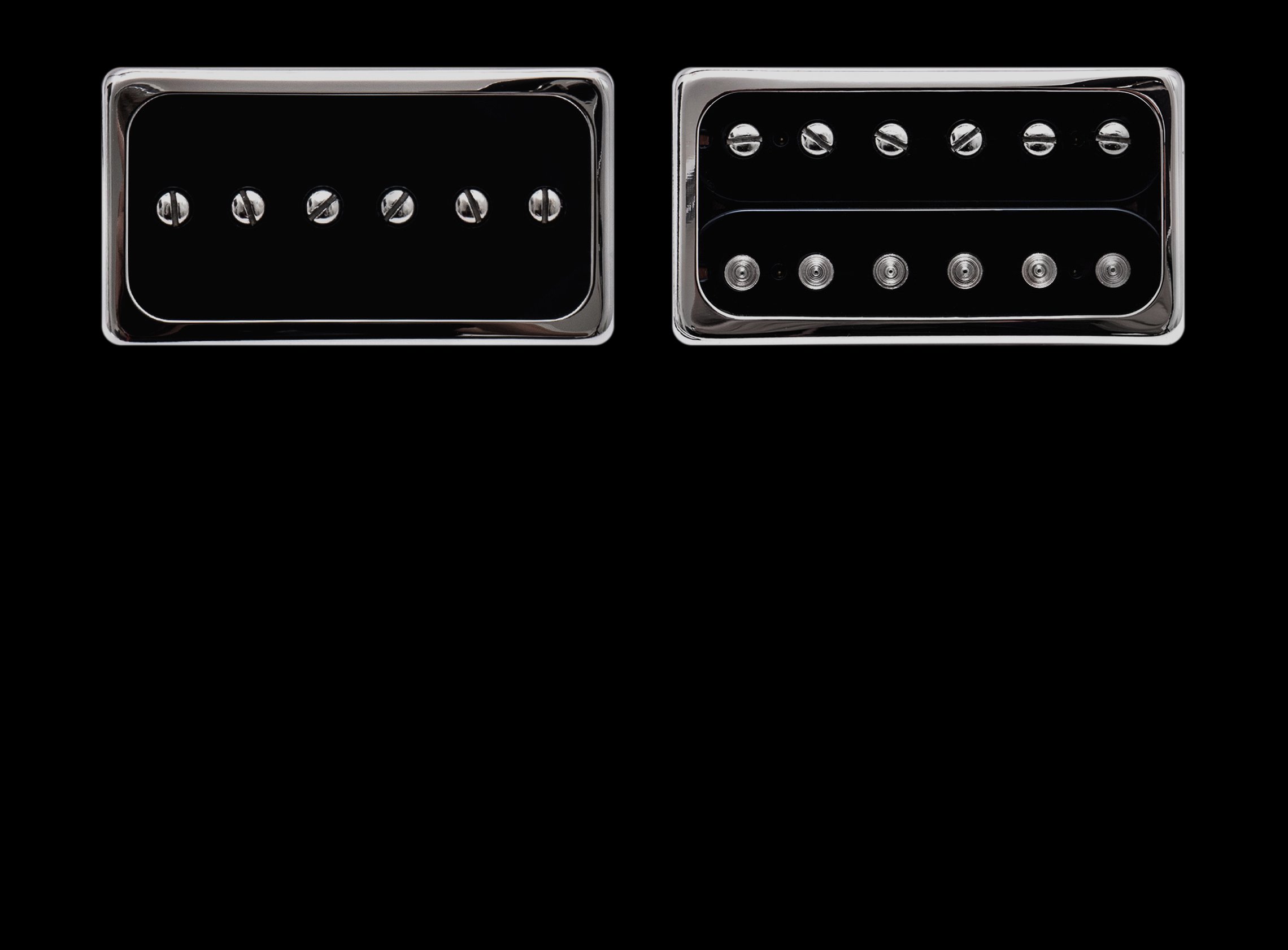

Image of Duesenberg Pickups

THE DREAM TEAM

Duesenberg Pickups are known for their distinct, clear and versatile tone that easily cuts through the mix from mellow Jazz to supercharged Rock.

Our creamy Domino P90 in the neck position and the classically voiced GrandVintage Humbucker at the bridge form an all-around dream team many have tried to replicate.
The acclaimed middle position of the heavy duty 3-way switch features a special wiring that filters certain low-end frequencies out of the humbucker signal. The result is an open, funky and extremely versatile addition to your pallet of tone.

WHAT WE LEARNED ABOUT GERMAN SILVER

The quality of the components in a pickup is vital when it comes to delivering the best tone possible right from the start. You cannot get back what is lost here. That is why we use a special material called German Silverfor the baseplate and cover. It's the only material that does not have a negative effect on frequencies transmitted by the pickup.

We also use a very specific insulated wire that we get from an old German copper wire factory. The coil is wound slowly, simulating a hand winding to give the pickup all the natural imperfections that make it sound great. The result is an extremely wide and defined frequency output that doesn't limit you or what you want to do.

Image of the Duesenberg Z-Tuners

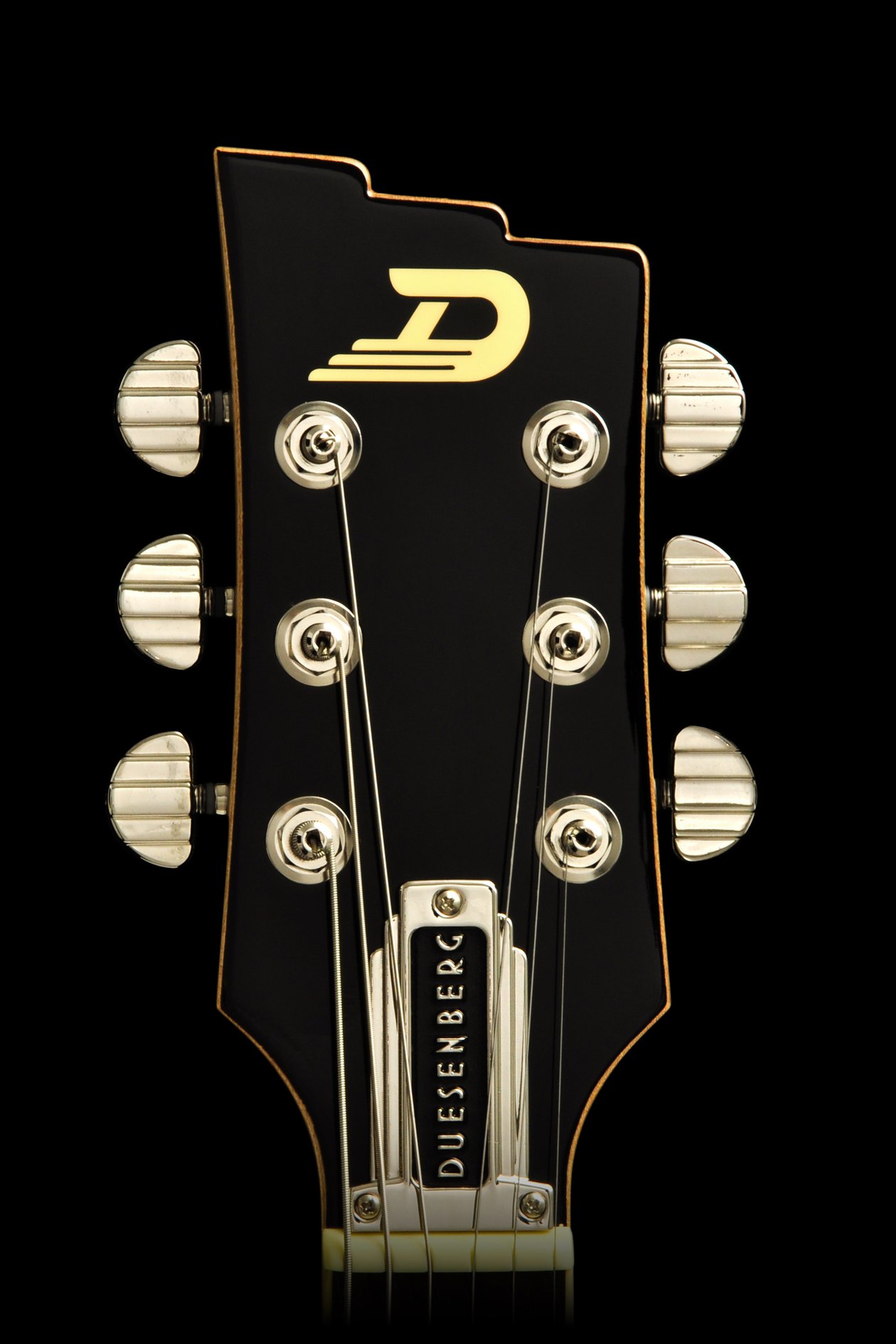

Z-TUNERS

We believe tuning your instrument yourself is an important moment before actually playing it.

Duesenberg Z-Tuners are specifically made to give you a super smooth and precise feel when tuning. They also allow you to elegantly hide the end of the cut-off string inside the tuner shaft so it's not damaging your case, gigbag or fingertips.

Maintenance-free life - guaranteed.

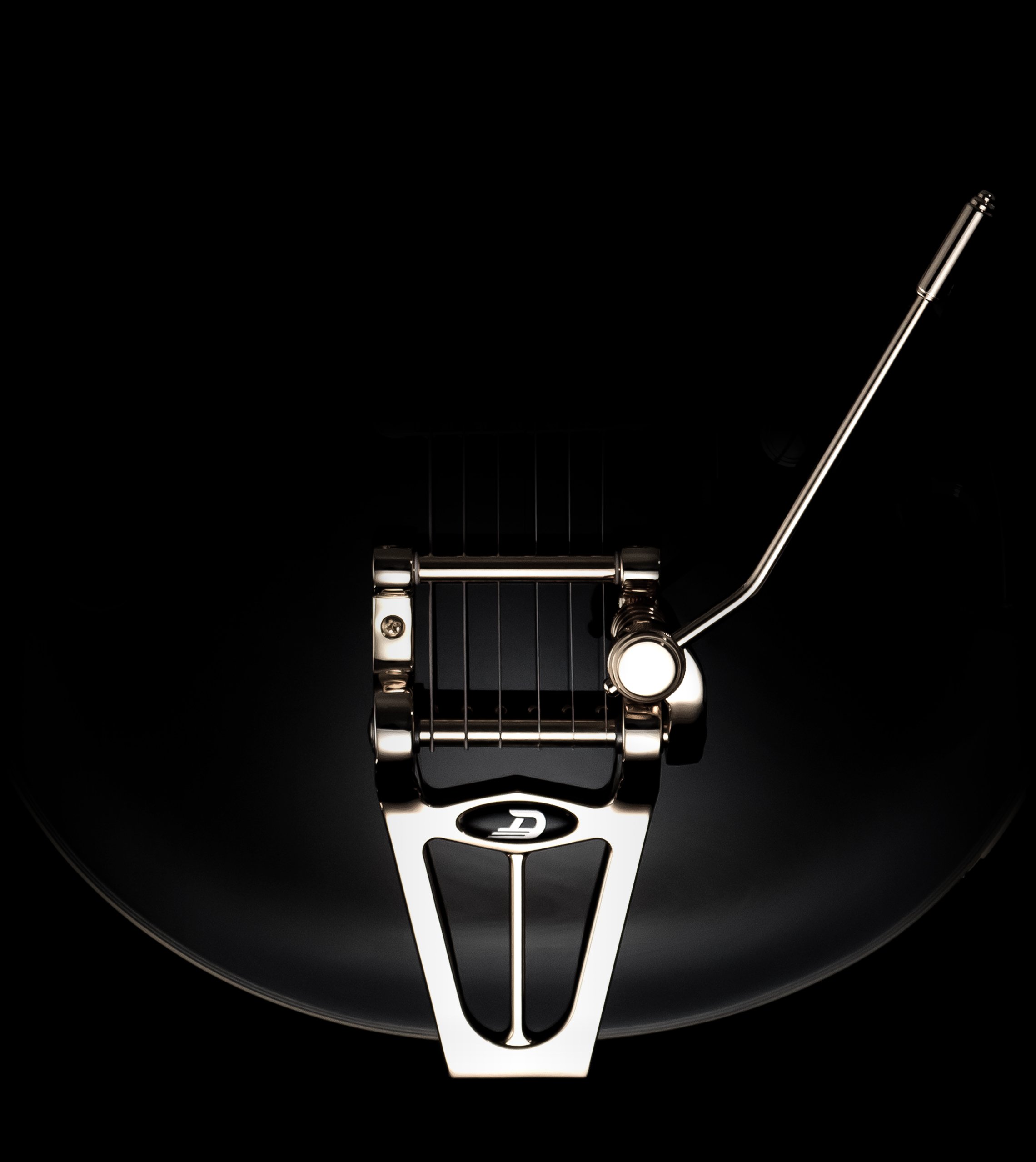

Image of the Duesenberg Diamond Deluxe Tremolo

Diamond Deluxe Tremola

Meet the Vibrato System that has changed the idea of what a classic design can do.

Buttery smooth action, reliable tuning stability and string changes that are a breeze are just the main aspects of our unique vibrato design.

The Diamond Deluxe gives you the best tone while being lightweight. Heavy duty needle and nylon bearings give you the highly responsive Duesenberg feel when using the vibrato arm. The arm itself can be turned freely for 360° and can be adjusted to your preferred angle and length. The strings are simply guided through the holes in the bar underneath the arm-axis and can be lead to the tuners without any hassle.

Proven daily on the stages of this world.

HOW ITS MADE:

From raw wood to the big stage - the Duesenberg Factory Tour:
